VOLTX100

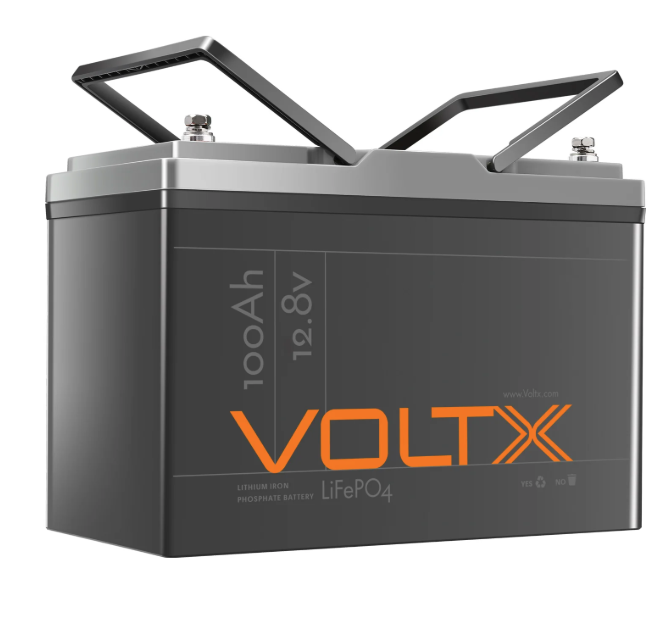

VoltX 12V 100Ah Lithium LiFePO4 Battery

The VOLTX range represent great value for money.  These LiFePO4 Lithium packs are UN3480 and IEC626219 certified which means you can feel confident in the fact that they are made from quality cells.  At 80% Depth of Discharge (DOD) you can utilise the amazing power that Lithium delivers and power your adventures.  5 Year Warranty

TECHNICAL SPECIFICATIONS

Brand    VoltX
Nominal Voltage:    12.8V
Nominal Capacity:    100Ah
Charging Voltage:    14.2-14.6v
Rated Energy:    1280Wh
Standard Charging Current :    50A
Max Charging Current:    100A
Rated Discharge Current:    100A
Max. Discharge Current:    100A
Max. Discharge Current 5 sec:    200A
Approx Life Cycles:    4000
C-rating:    1C
Absorption Voltage:    14.4V
Float Voltage:    13.6V
Overcharge Protection:    14.4V
Overcharge Recovery:    14V
Overdischarge Protection:    11.2V
Overdischarge Recovery:    11.6V
Cell Grouping:    4S1P
Working Temperature Range:    Charge: 0°C to 45°C
Discharge: -25°C to 65°C
Storage Temperature:    -10℃ to 50℃
Battery Cells:    Prismatic
Case Material:    ABS Plastic
Parallel Connection:    Yes, max 6 batteries
Series Connection:    Yes, max 6 batteries

Warranty in Years:    5

DIMENSIONS & WEIGHT
Dimensions:    306(L) x 171(W) x 210(H)mm
Weight:    10.8kgs
