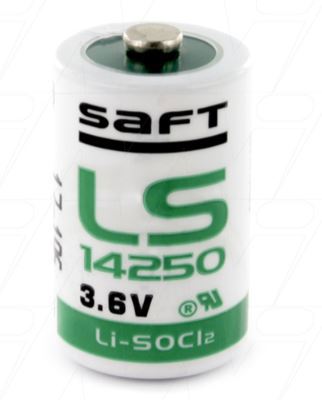

LS14250 1/2AA size Saft Lithium 3.6V Thionyl Chloride Battery - Bobbin Type

Genuine and brand new Saft LS14250 Lithium Primary Batteries. Primary batteries, are NOT RECHARGEABLE.

Specifications:

• Type: 1/2 AA Size, Non Rechargeable Battery
• Open circuit voltage: (at 20°C) 3.67 V
• Nominal voltage: (at 0.1 mA 20°C) 3.6 V
• Nominal energy: 4.32 Wh
• Pulse capability: Typically up to 100 mA
  (100 mA/0.1 second pulses, drained every 2 mn at 20°C from undischarged cells with 10 µA base current, yield voltage readings above 3.0 V. The readings may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions. Consult Saft)
• Maximum recommended continuous current: 35 mA
  (Higher currents are possible, consult Saft)
• Storage: (recommended) 30°C ( 86°F) max
  (for more severe conditions, consult Saft)
• Operating temperature range: -60°C/ 85°C
  (Operation above ambient T may lead to reduced capacity and (-76°F/ 185°F) lower voltage readings at the beginning of pulses. Consult Saft)
• Diameter: (max) 14.55 mm (0.57 in)
• Height: (max) 25.15 mm (0.99 in)
• Typical weight: 8.9 g (0.3 oz)

Main applications

• Utility metering
• Automatic meter reading
• Alarms and security devices
• Tollgate systems
• Memory back-up
• Computer real-time clocks
• Tracking systems
• Automotive electronics
• Professional electronics
